Way covers protect exposed machine components from chips, dust, coolant, debris, and other contaminants that can interfere with equipment operation. Selecting the correct cover requires more than matching dimensions. The machine’s movement, operating environment, available space, and required level of protection all need to be considered.
CENTRYCO manufactures custom fabric protective covers for industrial machinery and specialized equipment. Its way cover options can be configured for different machine movements, environments, and installation requirements. This guide covers three common applications: mill way covers, CNC way covers, and linear way covers.
Start With the Application and Operating Environment
The machine and its operating environment should be the starting point for selecting a way cover. Consider how the equipment moves, what contaminants it encounters, and how much space is available for the cover.
Key factors include:
- Type of machinery and protected components
- Direction, speed, and range of movement
- Exposure to chips, dust, coolant, oils, sparks, or chemicals
- Available installation space and clearance
- Operating temperature and material requirements

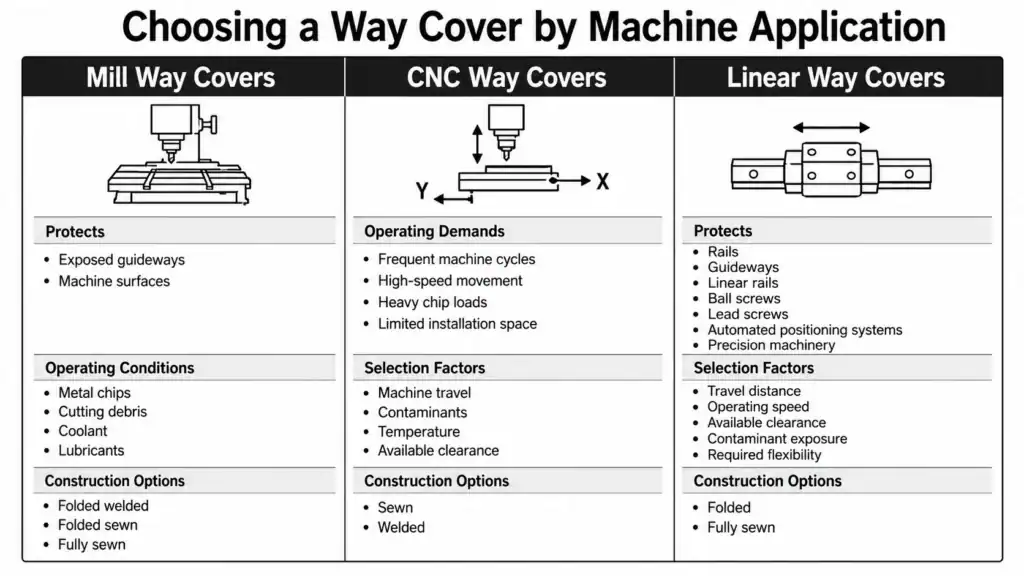

Mill Way Covers
Mill way covers protect exposed guideways and machine surfaces on milling equipment. Milling operations can produce metal chips, cutting debris, coolant, and lubricants that may reach precision components during regular operation.
CENTRYCO offers several construction options for these applications, including folded welded, folded sewn, and fully sewn way covers. The right option depends on the operating environment and the level of fluid resistance, flexibility, durability, and temperature resistance required.
Custom mill way covers can be manufactured around the machine’s dimensions and movement requirements. Providing accurate measurements and application details helps CENTRYCO determine the appropriate configuration for the equipment.
CNC Way Covers
CNC fabric way covers provide protection for CNC machinery exposed to chips, coolant, and other contaminants. CNC equipment can also place specific demands on a cover because of frequent machine cycles, high-speed movement, heavy chip loads, and limited installation space.
The cover must move with the machine without interfering with its operation. Construction and material selection should account for the machine’s travel, contaminants, temperature, and available clearance.
CENTRYCO provides both sewn and welded construction options. Welded covers can provide fluid-resistant and watertight protection, while sewn covers allow the use of durable specialized fabrics that may be better suited to certain applications. The best choice depends on the machine rather than simply choosing one construction over another.
Linear Way Covers
Linear way covers protect rails, guideways, and other components that move along a linear path. They can be used on equipment such as linear rails, ball screws, lead screws, automated positioning systems, and precision machinery.
For these applications, the cover needs to accommodate the machine’s full travel without restricting movement. Travel distance, operating speed, available clearance, contaminant exposure, and required flexibility all affect the selection.
CENTRYCO manufactures folded and fully sewn configurations for linear applications. Material options can also be considered for equipment exposed to elevated temperatures or demanding operating conditions.
Choose the Right Way Cover Construction
CENTRYCO offers several construction options to address different machine requirements.
Folded welded covers are suited to applications where fluid resistance, durability, and a sealed construction are important. Folded sewn covers provide flexible fabric construction and allow specific materials to be used based on the application. Fully sewn covers are another option where specialized fabrics, flexibility, or sewable materials are preferred.
Material selection should account for temperature, abrasion, chemicals, fluids, sparks, and other conditions present around the machine. There is no single construction that fits every application.

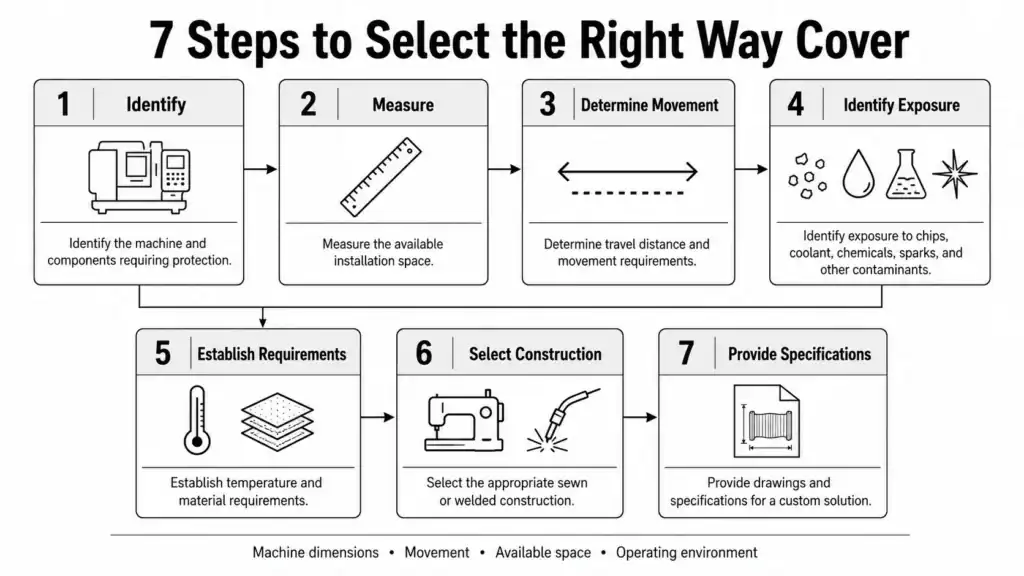

Final Selection Checklist
Before requesting a way cover, review the machine and application requirements:
- Identify the machine and components requiring protection.
- Measure the available installation space.
- Determine travel distance and movement requirements.
- Identify exposure to chips, coolant, chemicals, sparks, and other contaminants.
- Establish temperature and material requirements.
- Select the appropriate sewn or welded construction.
- Provide drawings and specifications for a custom solution.
With these details available, CENTRYCO can help you determine the appropriate way cover configuration for your equipment. Contact CENTRYCO to discuss your application and request a custom way cover.
Protect Your Equipment Before Contamination Becomes a Problem
A damaged guideway or exposed machine component can lead to downtime, repairs, and interruptions to production. The right way cover provides a practical layer of protection against the chips, coolant, debris, and other contaminants your equipment faces during operation.
If your machine’s guideways or moving components are exposed, now is the time to address the risk. Contact CENTRYCO to discuss your equipment and find a way cover configuration suited to its operating requirements.
Frequently Asked Questions
Can way covers be used in high-temperature applications?
Yes. CENTRYCO offers high-temperature material options for applications where machinery and protective covers are exposed to elevated operating temperatures.
Can way covers be installed where machine disassembly is difficult?
Yes. Certain CENTRYCO cover configurations can accommodate installation requirements where access is limited or disassembly is undesirable.
Can way covers protect against liquids and coolant?
Yes. Welded way covers can provide fluid-resistant and watertight protection, making them suitable for machinery exposed to coolant and other liquids.
Are way covers available in different materials?
Yes. CENTRYCO offers different fabric and construction options based on factors such as temperature, abrasion, chemicals, fluids, and other operating conditions.
Can CENTRYCO make way covers for unusual machine configurations?
Yes. CENTRYCO manufactures custom way covers based on the machine’s dimensions, movement, available space, and operating environment.
